1. When threading, changing pitch, or changing lead, there's no need to stop the machine or change gear sets; parameters can be directly input on the panel, reducing switching time from tens of minutes to just seconds.
2. Machining accuracy and consistency are significantly improved; electronic synchronization eliminates gear backlash.
3. The operating threshold is greatly lowered, making it easy for beginners to use.
Modèle :
CT2670ESe balancer au-dessus du lit :
260mmBalancer sur le toboggan croisé :
140mmDistance entre les centres :
700mmMoteur :
1500WFeatures:
1. 38mm large spindle bore.
2. 1500W powerful brushless motor.
3. Spindle speed up to 2250rpm, synchronous belt drive.
4. Guide bed is hardened and precision ground.
5. Spindle is supported by precision tapered roller bearings.
6. Guide is equipped with adjustable clamping plate.
7. Convenient quick lock tailstock.
8. Tailstock can be offset for easy taper turning.

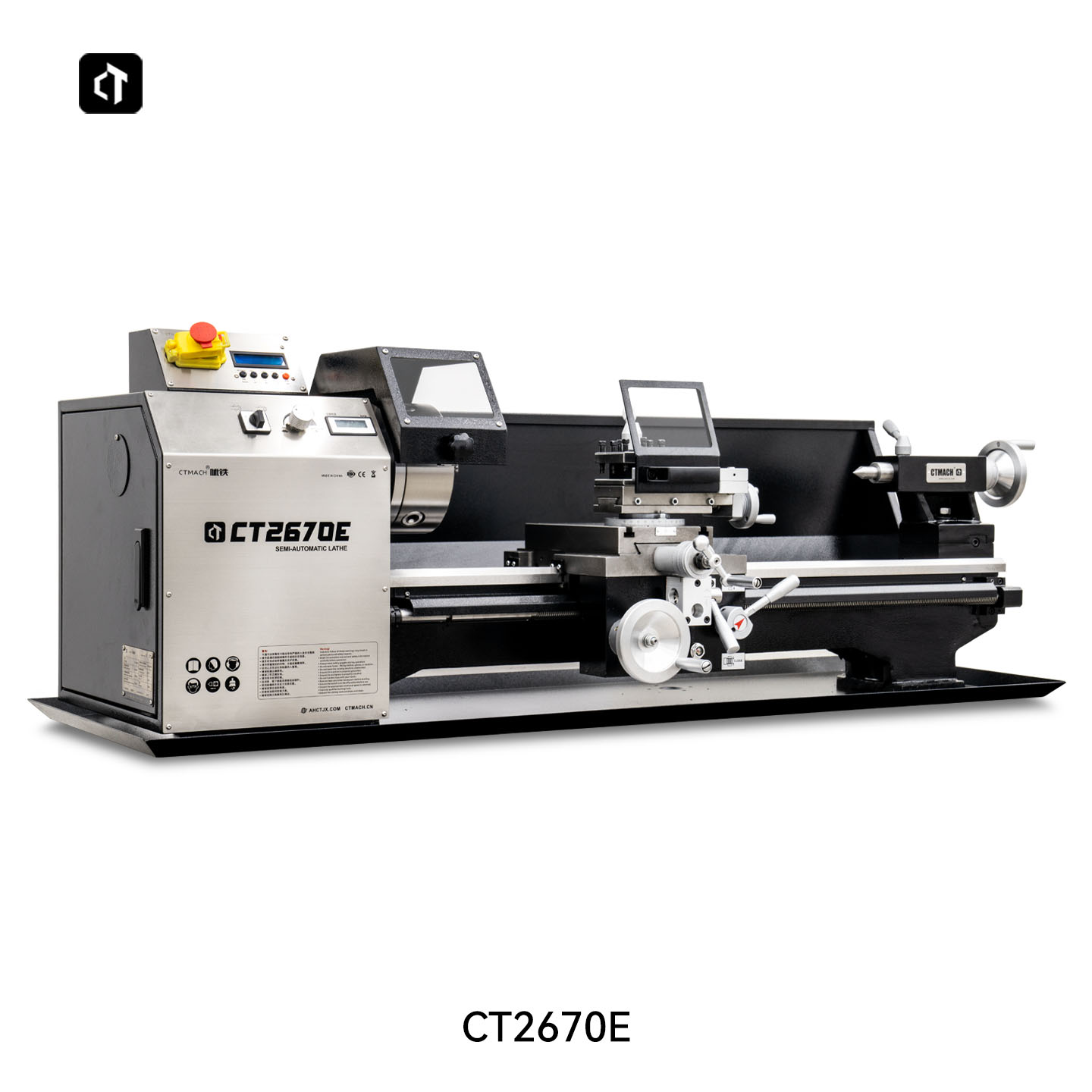

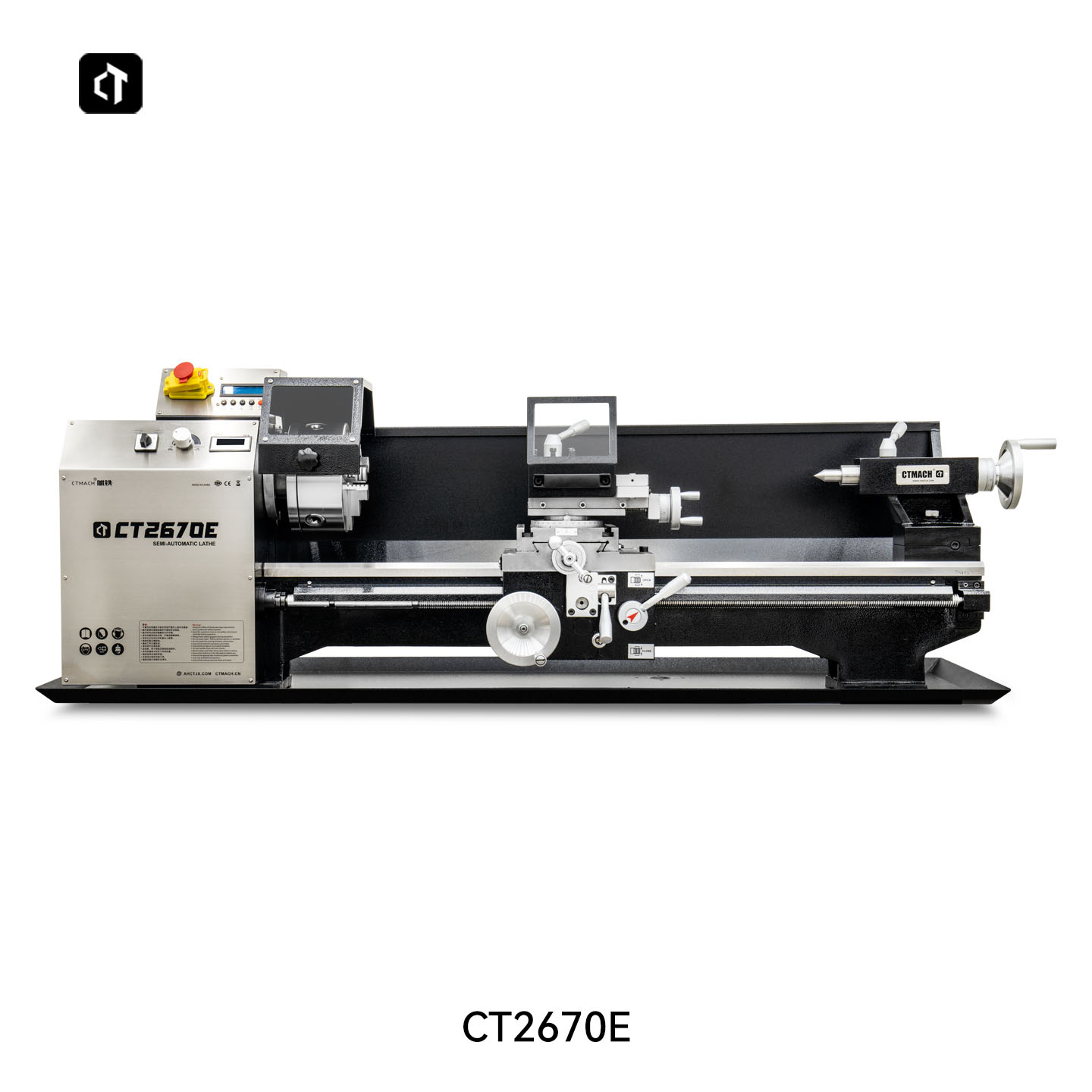

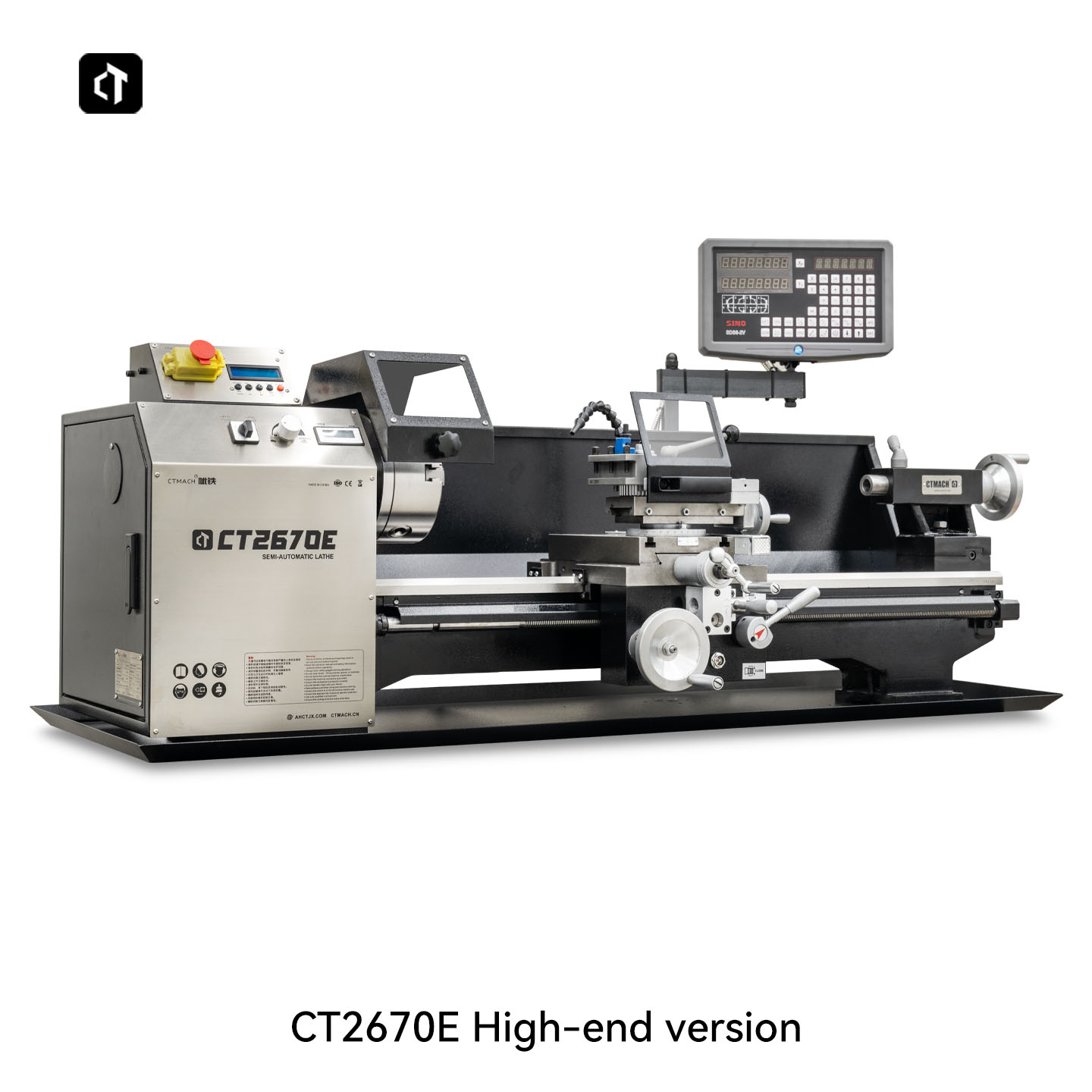

The CTMACH CT2670E Electronic lathe is a powerful piece of equipment for machining metal workpieces.
The product frame is made of cast iron and has been hardened and ground to ensure high strength and reliable vibration absorption during operation.
If an emergency occurs, simply press the emergency button to stop the device quickly and easily.
The transparent screen is designed to protect the operator from flying sparks and chips.
To make the job easier even for inexperienced lathes, there is an information sheet on the front panel of the machine.
The compact size allows you to place the device in a small production room, private or home workshop.
| Model | CT2670E |
| Slewing diameter on bed | 260mm |
| Slewing diameter on intermediate slide | 140mm |
| Distance between two centers | 700mm |
| Spindle speed | 50 ~ 2250RPM |
| Spindle taper | MT5 |
| Spindle bore diameter | 38mm |
| Metric thread types and range | 25 0.1 ~ 5.0mm |
| Imperial thread types and range | 29 96 ~ 5TPI |
| Longitudinal feed range | 0.01 ~ 0.4mm |
| Short tool post longitudinal stroke | 70mm |
| Transverse stroke | 115mm |
| Tailstock sleeve taper | MT2 |
| Tailstock sleeve stroke | 60mm |
| Motor | 1.5Kw |
| External dimensions | 1290*560*485mm |
| Packaging dimensions | 1380*575*640mm |
| Net weight | 140KG |
| Gross weight | 160KG |
Machines Ctmach Co., Ltd. s'engage à fournir des produits spécialement conçus, un support technique et un service client au coût le plus bas. Notre objectif est de fournir des outils et des ressources pour aider nos clients à atteindre leurs objectifs créatifs et à transformer leurs concepts en produits réels.Que vous soyez engagé dans la R&D, l'éducation, la production à court terme ou simplement un entrepreneur créatif, les petites machines-outils de Bite peuvent vous permettre de répondre à vos besoins plus facilement, plus rapidement et de manière plus économique.Spécialisé dans les centres de personnalisation de petites machines-outils domestiques, les tours ménagers, les perceuses et fraiseuses domestiques, les petits tournages, perçages et fraisages multifonctionnels
