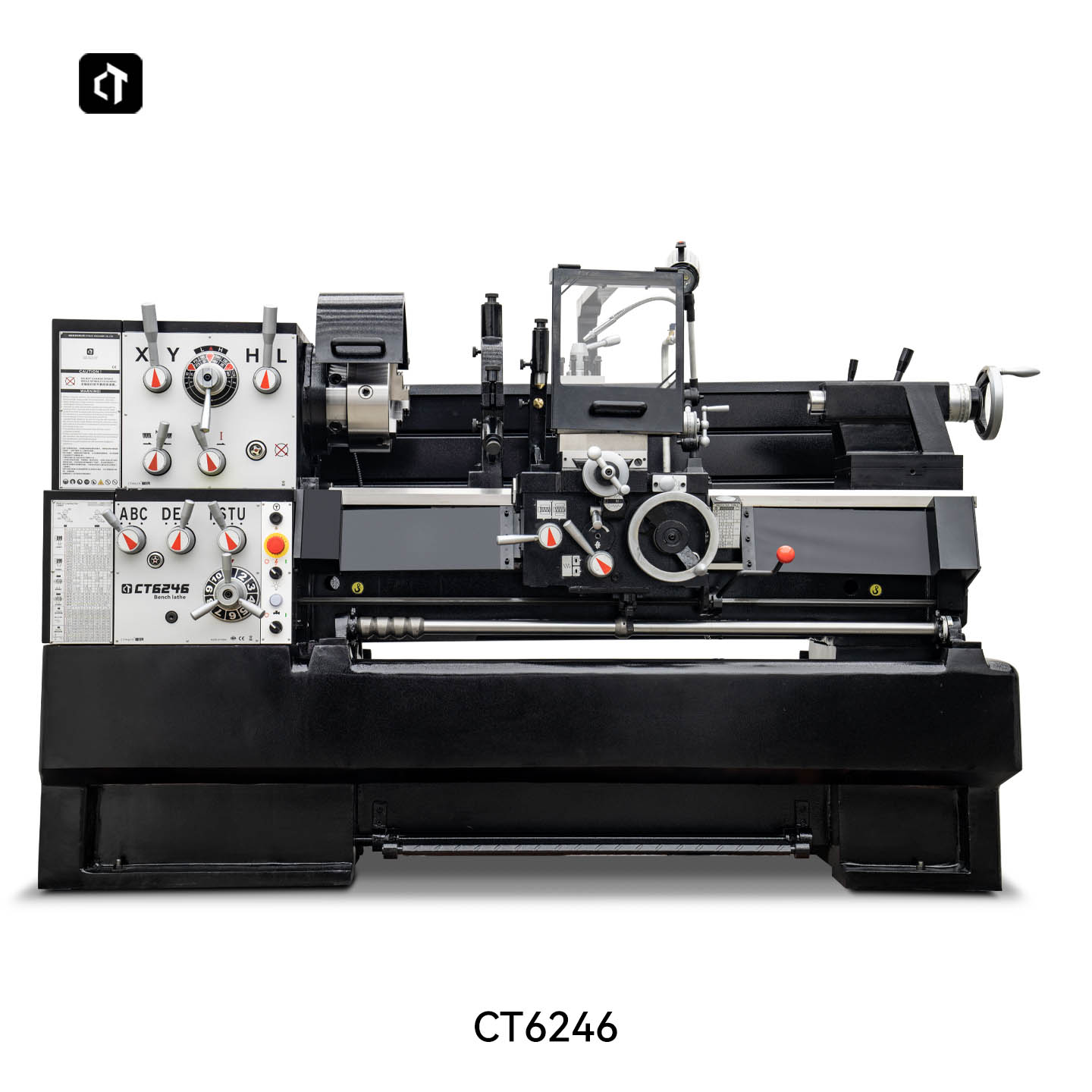

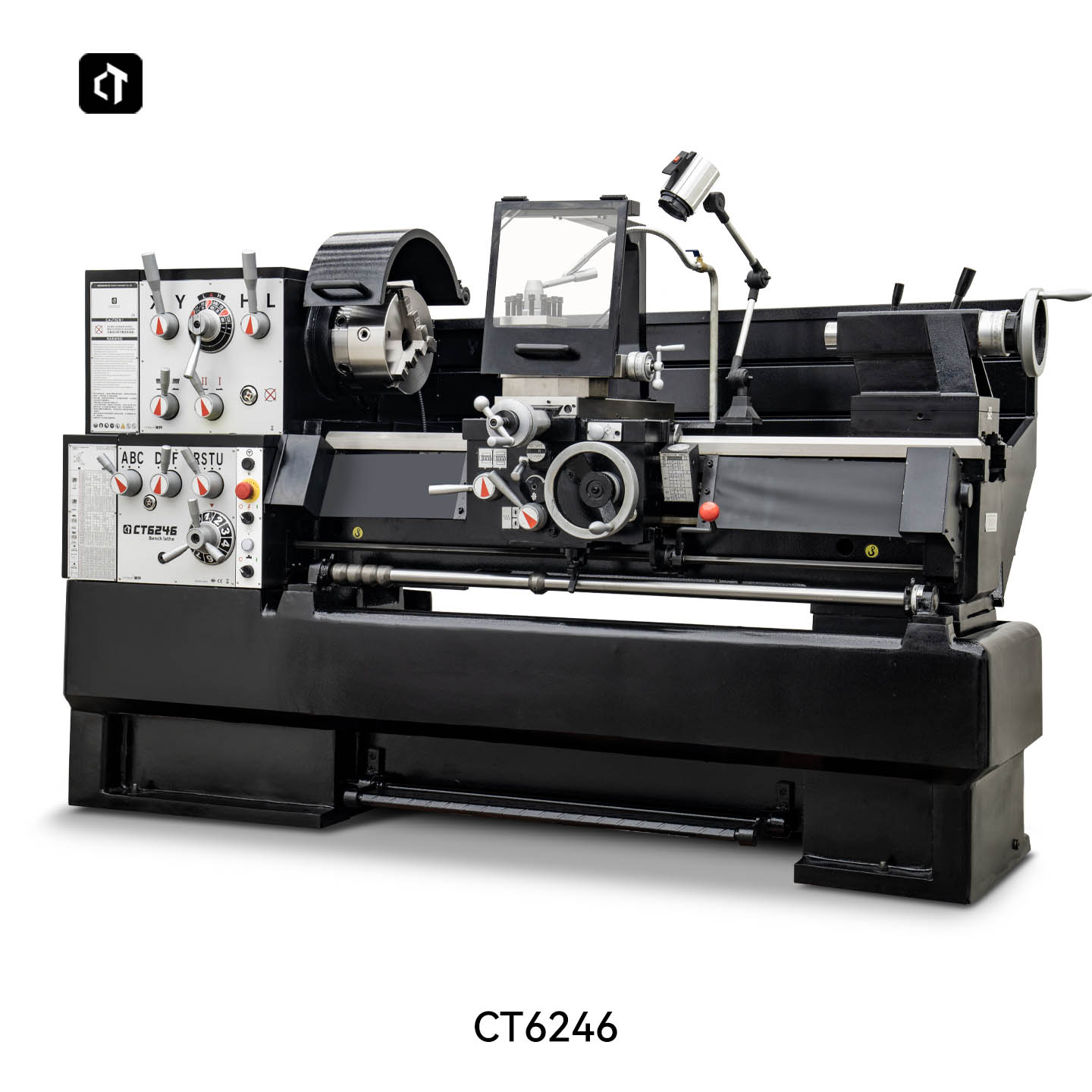

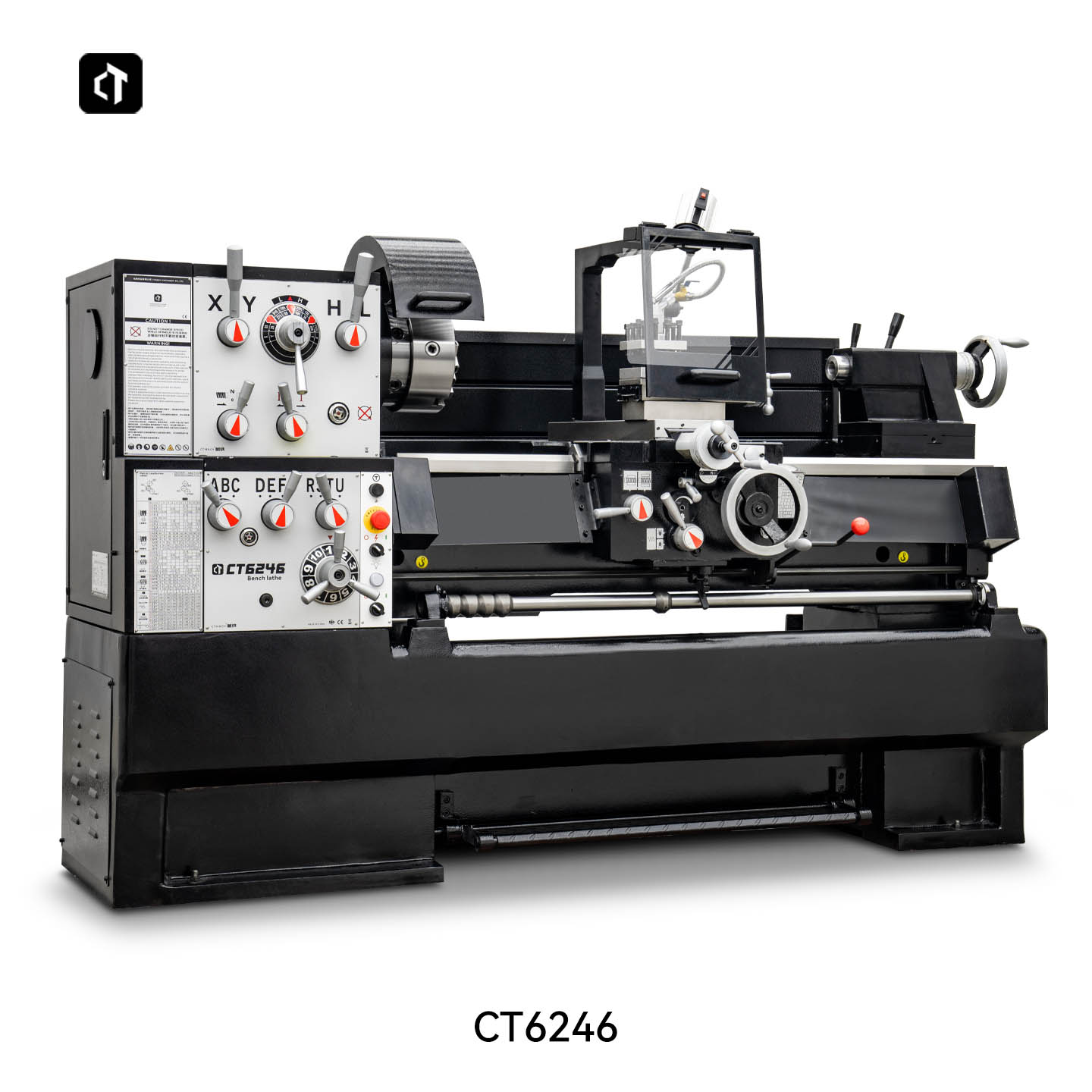

The CTMACH CT6246 table-top thread cutting lathe is designed for industrial turning of metal or plastic workpieces with the surface shape of a body of revolution.
The machine allows you to perform basic turning operations: turning and boring cylindrical and conical surfaces, trimming ends, cutting off, drilling, tapping.
Modèle :
CT6246Se balancer au-dessus du lit :
460Balancer sur le toboggan croisé :
274Distance entre les centres :
1000Moteur :
5500Features
Precision grinding and ultrasonic hardening bed adopts double V structure design with super rigidity.

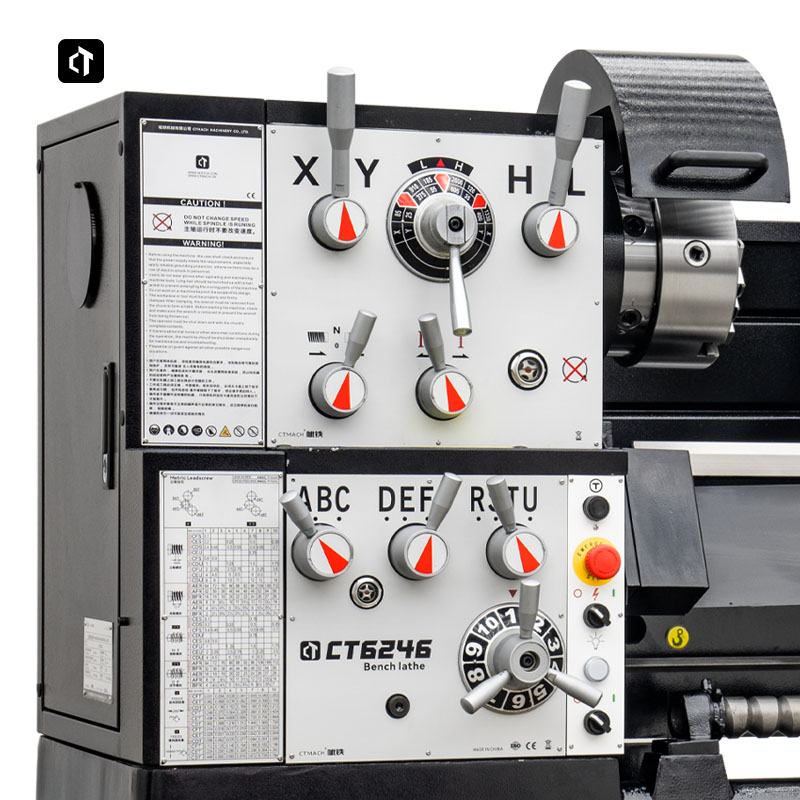

The spindle system has good rigidity and high precision. The main driving device is optimized and the headstock gear is refined Grinding.
This machine can process metric and imperial threads, and can process both module and diameter pitch.
The automatic stop device is used to realize the automatic stop of the workpiece of certain length. It is a safe and reliable pedal brake installation
In the operation can be quickly and effectively stopped.

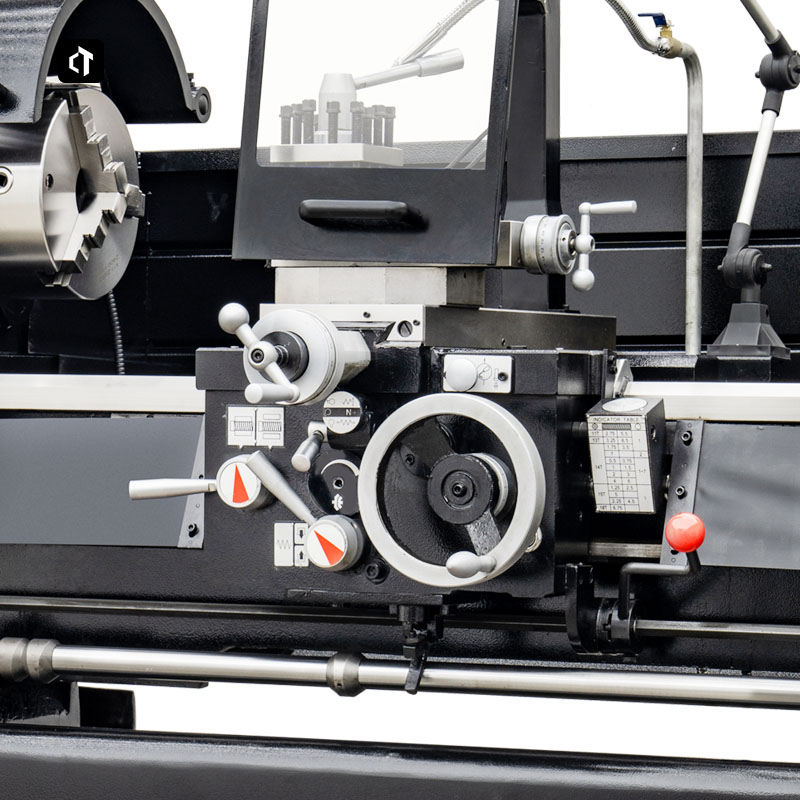

The lubrication system of slide box can effectively reduce the wear of lead screw and enhance the life of machine tool.
| Model | CT6246 |
| Spinning Diameter of Bed | 460mm |
| Spinning Diameter of Middle Slide | 274mm |
| Spinning Diameter of Saddle Groove | 690mm |
| Center Height | 230mm |
| Workpiece Length | 1000mm |
| Bed Width | 300mm |
| Tool Holder Size | 25*25mm |
| Transverse Travel of Middle Slide | 290mm |
| Travel of Tool Post Slide | 120mm |
| Spindle Through Hole Diameter | 82mm |
| Spindle Type | D1-6 |
| Spindle Inner Hole Taper | 90(1:20) * 4 |
| Spindle Speed Range | 12 25~2000RPM |
| Lead Screw Diameter and Thread | 40mm*4T.P.I |
| Metric Longitudinal Feed Range | 0.031~1.7mm /r.e.v (42 ) |
| Metric Transverse Feed Range | 0.014~0.784mm /r.e.v (42) |
| Metric Thread Range/Number | 0.1~14 mm (41) |
| Imperial Thread Range/Number | 2~112T.P.I (60) |
| Diameter Pitch Thread Range/Number | 4~112 D.P (50) |
| Module Thread Range/Number | 0.1~7 M.P (34) |
| Tailstock Sleeve Diameter | 60mm |
| Tailstock Sleeve Travel | 120mm |
| Tailstock Sleeve Taper | M.T 4 |
| Main Motor Power | 5.5Kw |
| Water Pump Power | 90w |
| Overall Dimensions | 2170*1040*1340mm |
| Net Weight | 1780KG |
