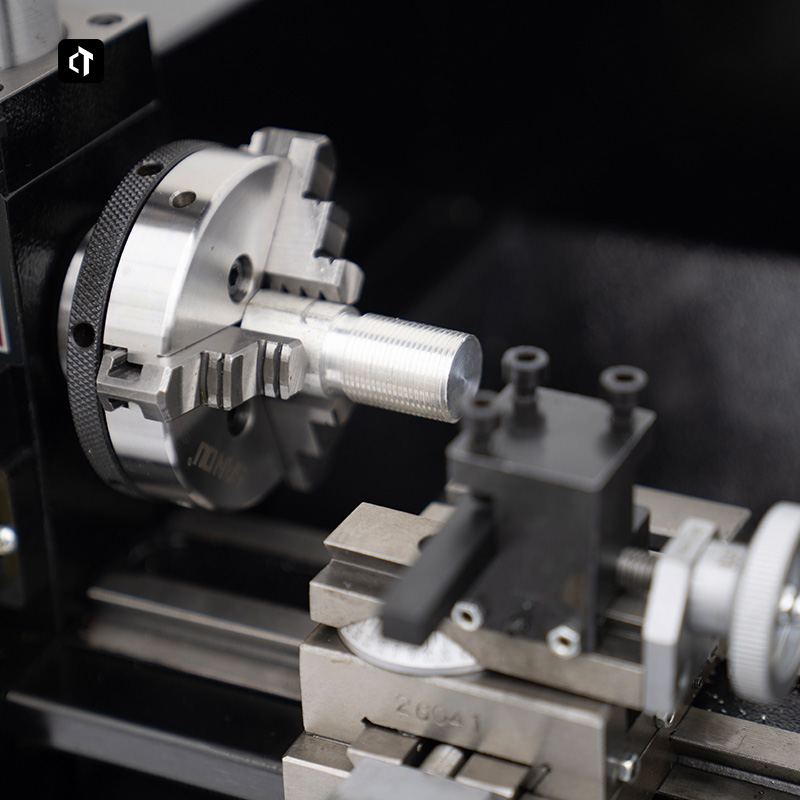

The CT125E is a 3-in-1 micro machine tool that integrates turning, drilling, and milling operations. Featuring an electronic gearing system, feed and thread cutting can be directly set via programming without the need for manual change gear changes. Combined with variable speed control, it offers greater convenience and higher efficiency. With its compact structure and versatile functionality, the CT125E is an ideal choice for educational laboratories, DIY workshops, and small parts machining.
Modèle :
CT125ESe balancer au-dessus du lit :
125mmBalancer sur le toboggan croisé :
60mmDistance entre les centres :
180mm

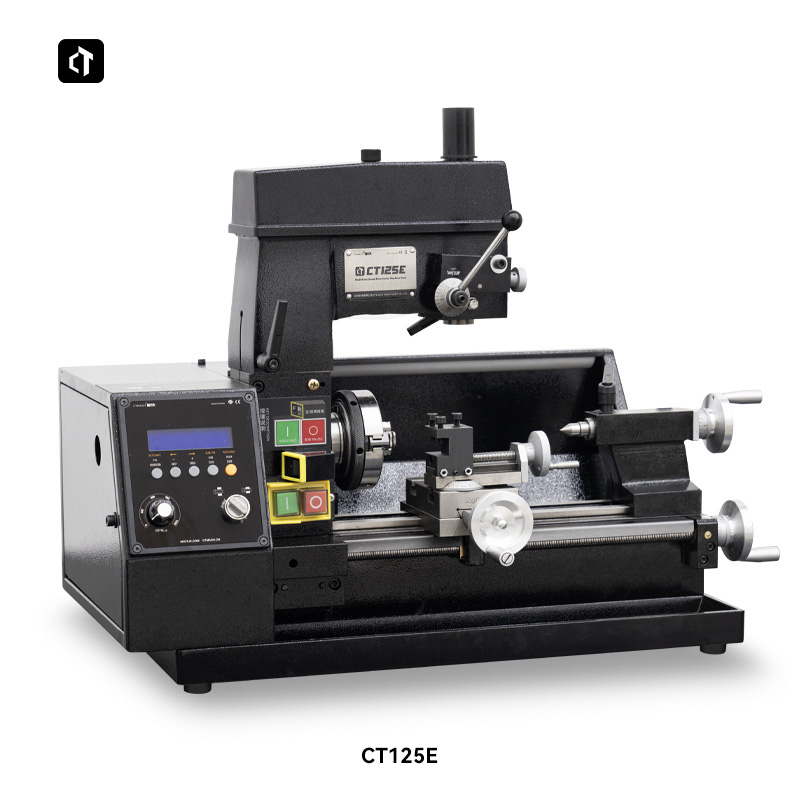

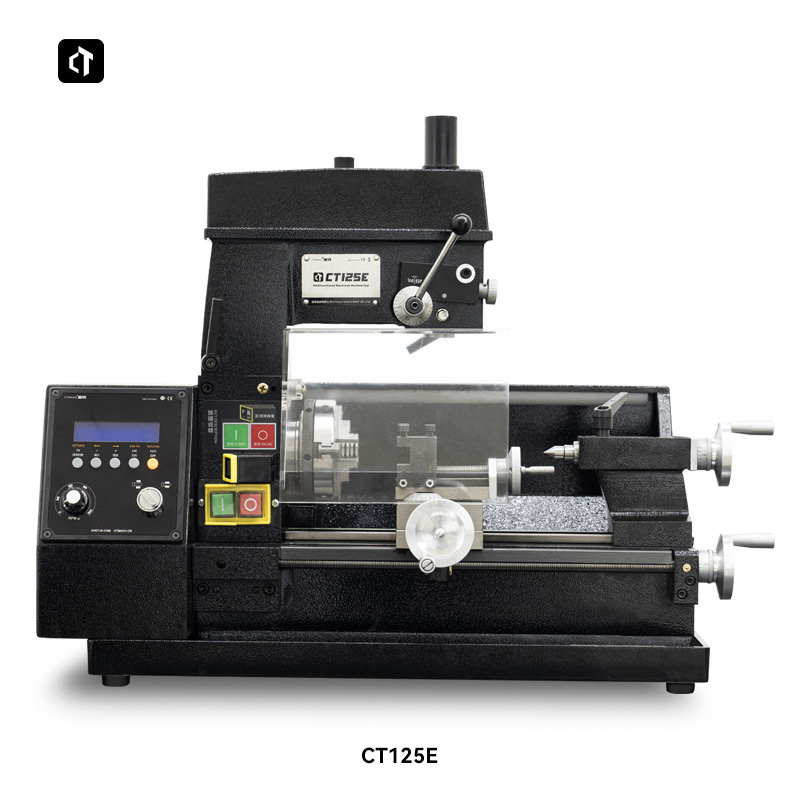

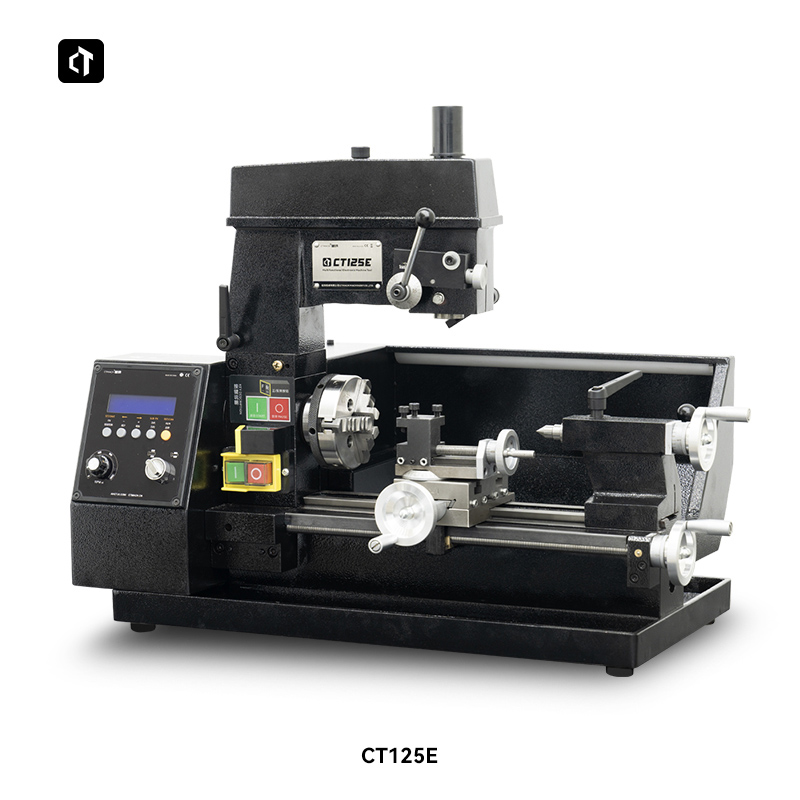

The CT125E is a compact and versatile 22 kg mini multi-function machine tool, designed for turning, drilling, and milling operations.
Built with a cast iron body, all-metal gears, and dovetail guide rails for the bed guides, the machine ensures larger contact surfaces, improved stability, and long-term durability.

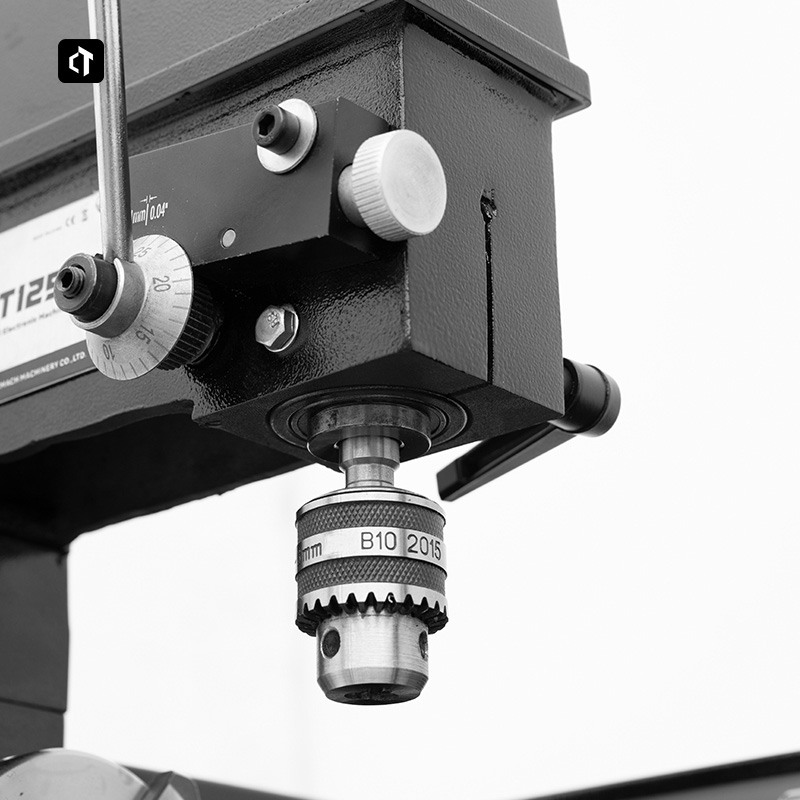

The drilling and milling head can be rotated and lifted, allowing convenient and quick switching between turning, drilling, and milling operations.
Equipped with an electronic gearing system, feed and thread cutting parameters can be easily set via programming, eliminating the need for manual change gear changes and significantly reducing setup time.

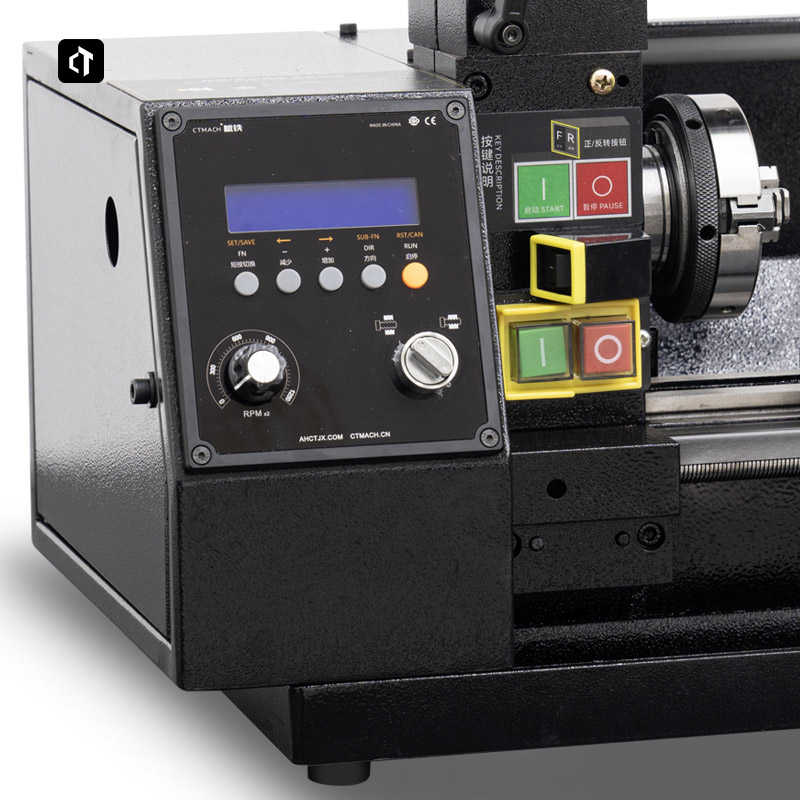

The spindle features variable speed control, providing continuous and smooth speed adjustment to suit different materials and machining requirements.
This machine is capable of processing a wide range of materials including aluminum, copper, wood, nylon, and more.
It is ideally suited for teaching demonstrations in school laboratories, as well as for home DIY projects involving small aircraft parts, watch components, and other precision repair work.
| Model | CT125 | CT125E |
| Turning Specifications | ||
| Swing over bed | 125mm | |
| Distance between centers | 180mm | |
| Swing over cross slide | 60mm | |
| Spindle bore diameter | 9mm | |
| Spindle taper | MT1 | |
| Tailstock quill travel | 18mm | |
| Tailstock quill taper | MT1 | |
| Metric thread range and number of pitches | 8，0.4~1.5mm | Programming settings |
| Imperial thread range and number of pitches | 8，0.0028~0.0055 1/n″ | Programming settings |
| Longitudinal feed | 0.07, 0.14 mm/r | Programming settings |
| Spindle speed range and steps | 560~2500RPM，5 steps | 50~2250 RPM（Variable） |
| Drilling / Milling Specifications | ||
| Max. drilling diameter | 6mm | |
| Distance from spindle nose to table surface | 180mm | |
| Distance from spindle centerline to column surface | 125mm | |
| Swivel angle of drilling/milling head around column | 360° | |
| Spindle speed range and steps | 500~2500RPM ,10 steps | 50~2250 RPM（Variable） |
| Vertical travel of drilling/milling head | 60mm | |
| Table width | 60mm | |
| Table length | 85mm | |
| Table T-slot width | 8mm | |
| Spindle sleeve travel | 40mm | |
| Others | ||
| Motor | 120W | 200W |
| Net weight | 22kg | |
| Gross weight | 24kg | |
| Overall dimensions | 520*300*410mm | |
| Packing dimensions | 570*340*470mm | |
